IW 206 FG Installation Speaker

The IW 206 FG features a 6.5" Injected Molded Graphite woofer for exceptional low frequency response with incredibly low distortion. A 1" Polymer Soft Dome tweeter reproduces mid and high frequencies with precision, detail, and clarity without harshness at high volumes.

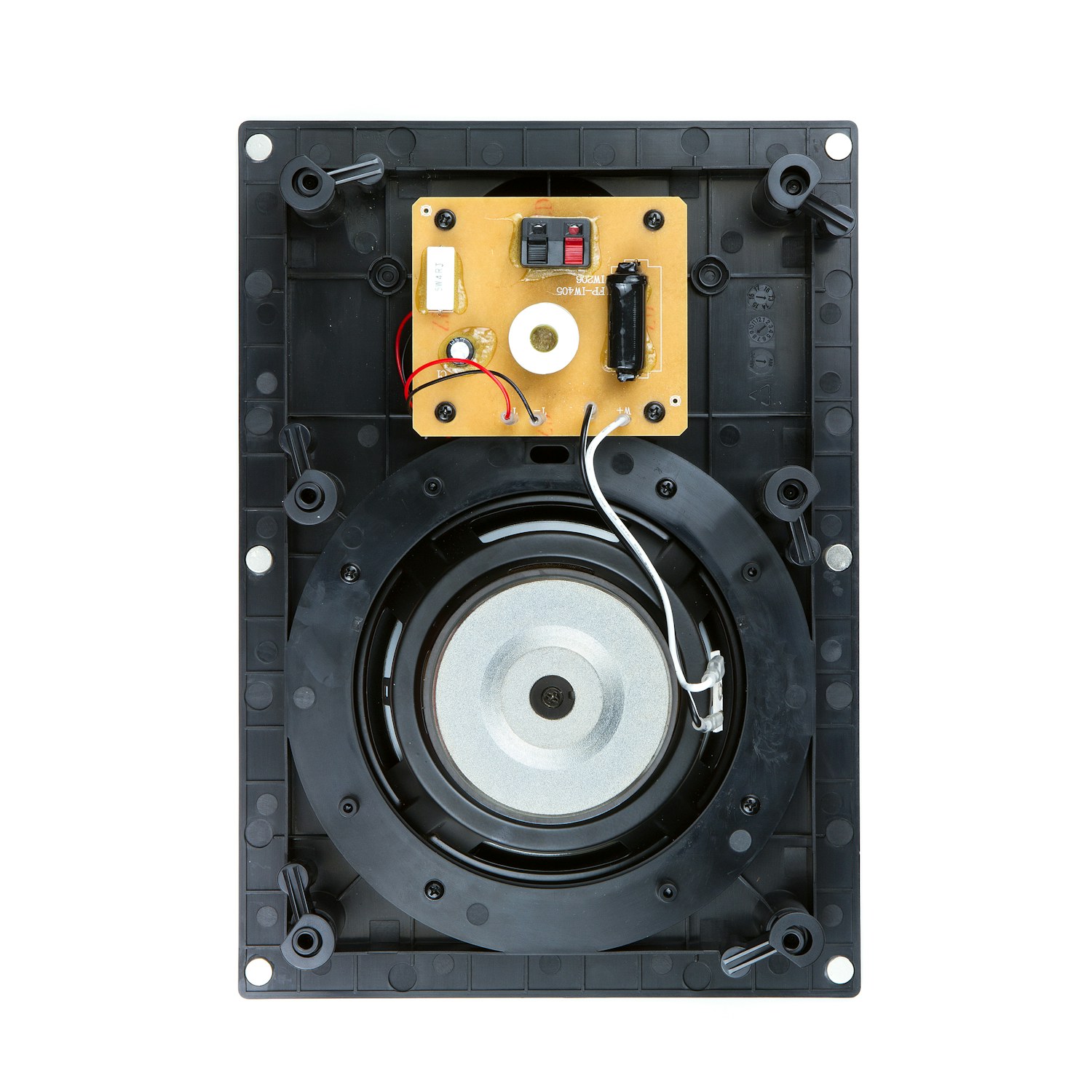

IW206 FG 2
IW206 FG 2

DESIGN

Drawing from the award-winning industrial design of the Jamo Custom 400 Series, the IW 206 FG espouses high performance audio with high design, while the flat magnetic paintable grille allows it to disappear completely into its environment. It's a powerful speaker, recommended for larger living areas or rooms where you really want to turn up the volume.

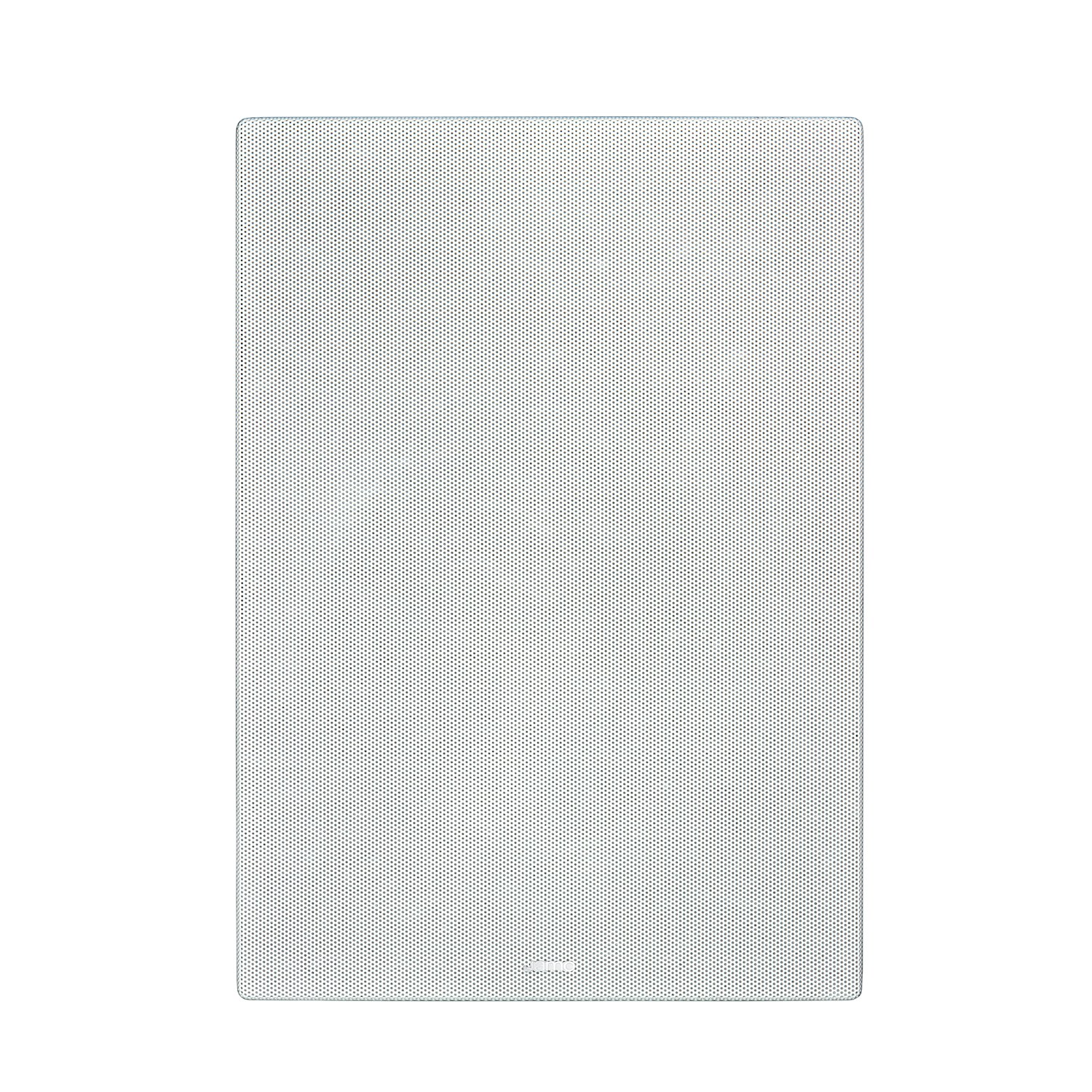

IW206 FG 3
IW206 FG 3

TECHNOLOGY

The IW 206 FG in-ceiling loudspeaker is packed with high-performance features:

  • DTT (Decoupled Tweeter Technology) to eliminate unwanted vibration that colors sound
  • HCC (Hard Conical Cone) technology for clear, detailed sound with virtually no distortion
  • Pivot tweeter for user-customizable directivity and limitless placement options
  • Tweeter bridge for complete ease of install and maximum baffle rigidity
  • A paintable magnetic grille that attaches quickly and blends invisibly in any room.

By utilizing modern design and core technologies, Jamo has once again revolutionized the custom-installation speaker market with audiophile-grade performance at unparalleled price points.

DETAILS

Woofer (mm/in)165 / 6.5 IMG
System Type2-way In-Wall
Tweeter (mm/in)25 / 1 Polymer Soft Dome Pivot Tweeterwith DTT Technology
Hole dimensions (mm/in, HxWxD)293 x 200mm / 11.5 x 7.9in
Product dimensions (mm/in, HxWxD)325 x 231 x 107 / 12.8 x 9.1 x 4.2
Power Handling (Watts Long/Short Term)55 / 110
Frequency Response (Hz, +/-3dB)68 - 21,000
Impedance8 ohm
GrilleFlat Magnetic Paintable

Spec Sheet

For more technical detail, download the Spec Sheet here: IW206 FG CUT SH .

Product Manual

Download the Product Manual for IW 206 FG Installation Speaker here: IW206 FG OM .
